FINAL DRIVE 9263594 9298565 4999092 TRAVEL DEVICE for ZX470-5G ZX470H-5G ZX470LC-5B ZX470LC-5G Hitachi Excavator
| 원래 장소 | 중국산 |
|---|---|
| 브랜드 이름 | TCY |
| 모델 번호 | ZX470-5G |
| 최소 주문 수량 | 1 |
| 가격 | 1000-3000 |
| 포장 세부 사항 | 나무 케이스 |
| 배달 시간 | 2-3/협상하다 |
| 지불 조건 | T/T,Alipay,Wechat... 등, |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 부품 번호 | 9263594 9298565 4999092 요법~ | 신청하십시오 | ZX470-5G ZX470H-5G ZX470LC-5B ZX470LC-5G |
|---|---|---|---|
| 나무상자 크기 | 53*53*66 | 무게 | 500kg |
| 상태 | 새로운 | 최소 주문 수량 | 1 |
| 보증 | 6개월 | 어플리케이션 | 굴삭기 최종 드라이브 |
제품 설명

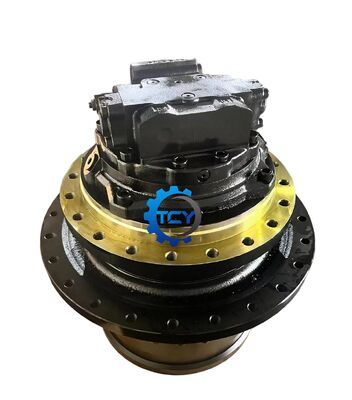

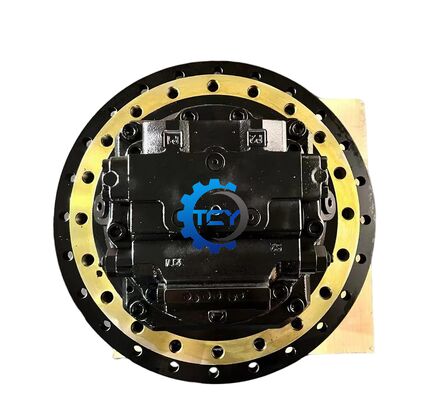

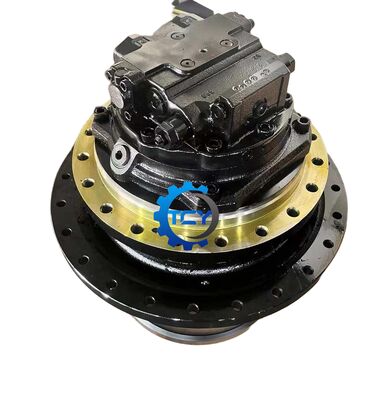

FINAL DRIVE 9263594 9298565 4999092 TRAVEL DEVICE for ZX470-5G ZX470H-5G ZX470LC-5B ZX470LC-5G Hitachi Excavator
Model: ZX470-5G ZX470H-5G ZX470LC-5B ZX470LC-5G |
Part name:Travel Motor with gearbox |
Part NO:9263594 9298565 4999092 ect~ |
MOQ:1PCS |
Packing:Wooden case |
Place of Origin:Made in China |
Aftersale service provided:Online support |
Apply To:Excavator Final Device |
Delivery Time: 1-3 days Or negotiate |
Note: Other models can be consulted online |
Product show
| Pos. | Part No | Qty | Parts name |
| 02-57. | 9263594 | [1] | TRAVEL DEVICE |
| 02. | 1027942 | [1] | HOUSING |
| 03. | 4344155 | [1] | SEAL;GROUP |
| 05. | 1015882 | [1] | DRUM |
| 06. | 1010956 | [1] | SPROCKET |
| 07. | 4200411 | [2] | BRG. ;ROL. |
| 08. | J932270 | [24] | BOLT |
| 09. | A590922 | [24] | WASHER;SPRING |
| 10. | 3043140 | [1] | NUT |
| 11. | 3043141 | [1] | PLATE;LOCK |
| 12. | J901225 | [2] | BOLT |
| 13. | 1015883 | [1] | CARRIER |
| 14. | 3053195 | [4] | GEAR;PLANETARY |
| 15. | 4452484 | [8] | BRG. ;NEEDLE |
| 16. | 4219595 | [8] | PLATE;THRUST |
| 17. | 4263903 | [4] | PIN |
| 18. | 4207947 | [4] | PIN;SPRING |
| 19. | 3053786 | [1] | GEAR;SUN |
| 22. | 4203187 | [1] | O-RING |
| 23. | 1018360 | [1] | GEAR;RING |
| 24. | J931845 | [30] | BOLT |
| 27. | 1015523 | [1] | CARRIER |
| 28. | 4263905 | [2] | SPACER |
| 29. | 3053194 | [3] | GEAR;PLANETARY |
| 30. | 4452483 | [3] | BRG. ;NEEDLE |
| 31. | 4201968 | [6] | PLATE;THRUST |
| 32. | 4263902 | [3] | PIN |
| 33. | 4203180 | [3] | PIN;SPRING |
| 34. | 3053785 | [1] | GEAR;SUN |
| 35. | 1015505 | [1] | CARRIER |
| 37. | 3053098 | [3] | GEAR;PLANETARY |
| 38. | 4452480 | [3] | BRG. ;NEEDLE |
| 39. | 4269295 | [6] | PLATE;THRUST |
| 40. | 4263901 | [3] | PIN |
| 41. | 4222030 | [3] | PIN;SPRING |
| 42. | 2044685 | [1] | SHAFT;PROP. |
| 44. | 4279343 | [3] | PLUG |
| 46. | 4288767 | [1] | PIN;STOPPER |
| 50. | 4274541 | [1] | BRG. ;BALL |
| 51. | 991725 | [1] | RING;RETAINING |
| 56. | 1023348 | [1] | COVER |
| 57. | 4373463 | [16] | BOLT;SHOE |
Exhibition
Shipping
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
