KTC11150 GEAR REDUCTION FOR CX460 CX470B
| 원래 장소 | 중국산 |
|---|---|
| 브랜드 이름 | TCY |
| 모델 번호 | CX460 CX470B CX490 SH490 |
| 최소 주문 수량 | 1 |
| 포장 세부 사항 | 나무 케이스 |
| 배달 시간 | 2-3/협상하다 |
| 지불 조건 | T/T,Alipay,Wechat...등, 서부 동맹, MoneyGram, D/P |
제품 상세 정보
| 모델 | CX460 CX470B CX490 SH490 | 제품 이름 | 스윙감속기어 |
|---|---|---|---|
| 부품 번호. | KTC0185 KTC10240R KTC11150 | MOQ | 1개 |
| 무게 | 450kg | 나무 케이스 | 55*55*60 |
| 상태 | 새로운 | 브랜드 이름 | TCY |
제품 설명

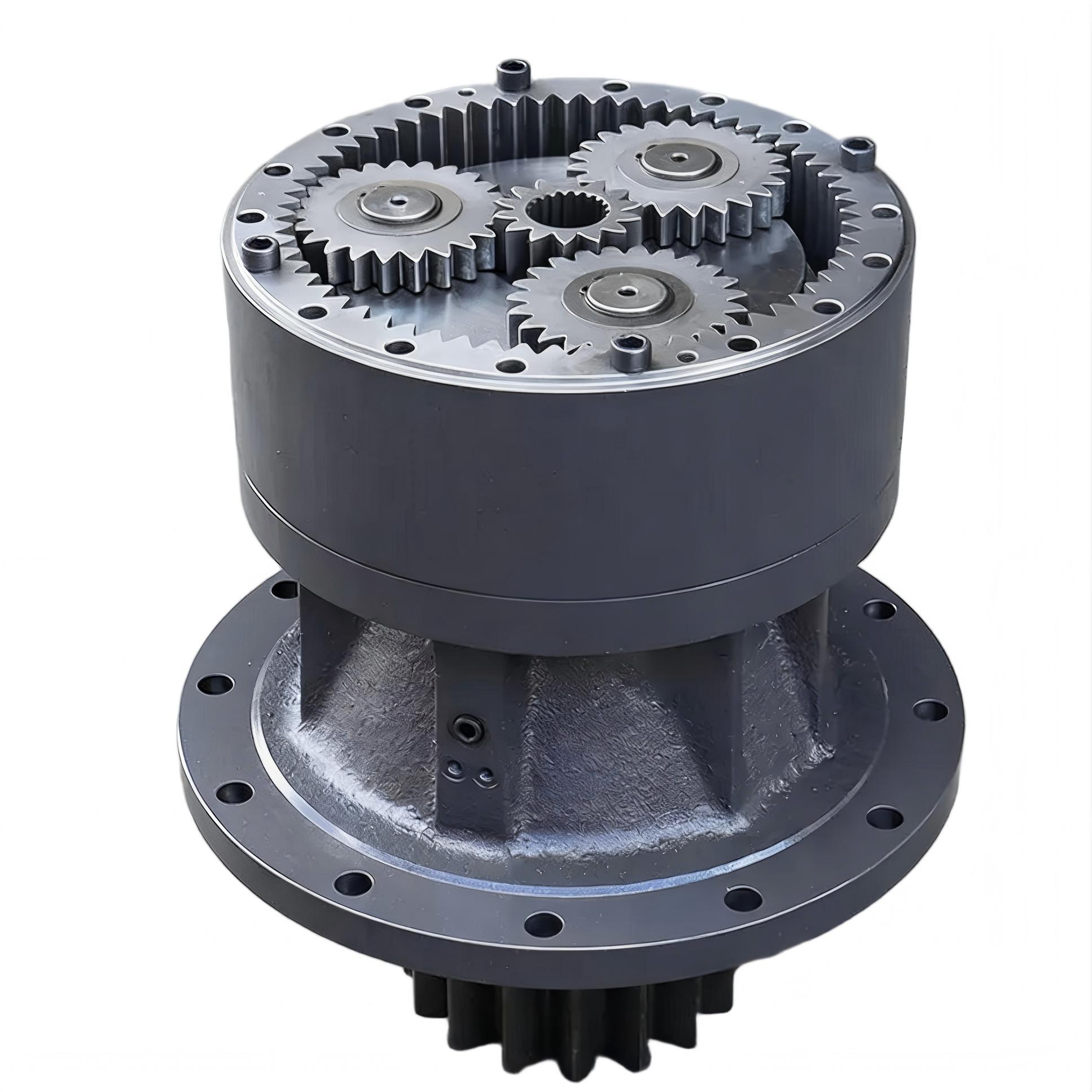

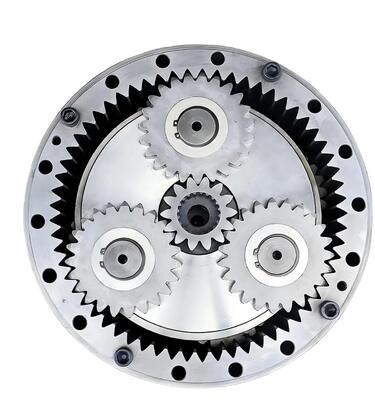

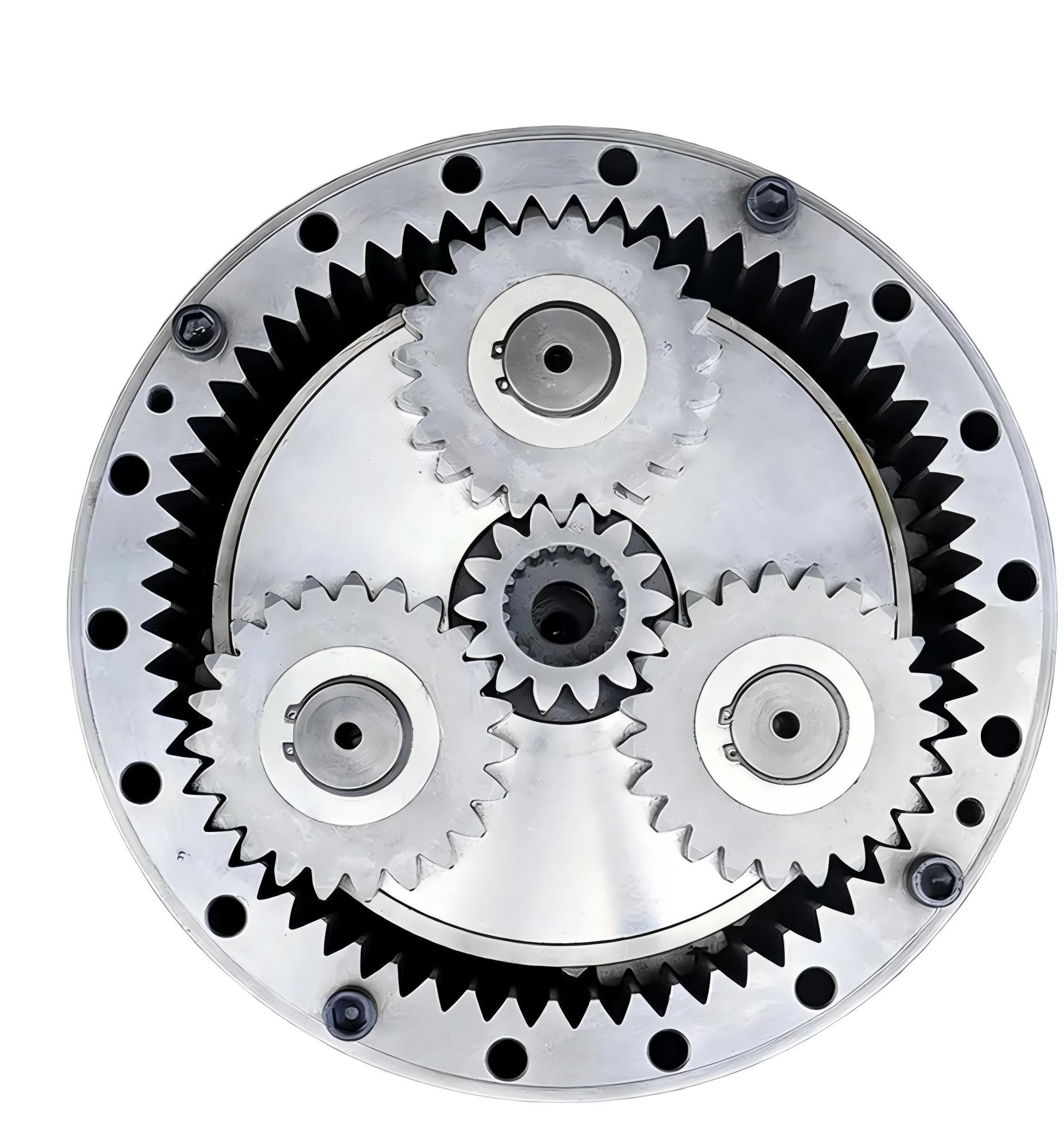

KTC0185 KTC10240R KTC11150 GEAR REDUCTION FOR CX460 CX470B SWING DEVICE
| Model: CX330 CX350 | Part name:Swing Reduction Gear |
| Part NO.:KSC0253 KSC0247 KSC10170 | MOQ:1PCS |
| Packing:Wooden case | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:CASE Excavator |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |
Product
| Pos | Part No | Qty | Parts name |
| 3 | KTC0185 | [1] | GEAR REDUCTION UNIT |
| 3 | KTC10240R | [1] | REMAN-REDUCTION UNIT |
| 3 | KTC10240C | [1] | CORE-REDUCTION UNIT |
| 4 | KTC0160 | [1] | SUN GEAR |
| 5 | NSS | [1] | NOT SOLD SEPARAT |
| 6 | KTC0182 | [1] | SHAFT, PLANETARY CAR |
| 7 | KTC0161 | [1] | SUN GEAR |
| 8 | KTC0166 | [1] | RING GEAR |
| 9 | KTC0183 | [1] | PINION CARRIER |
| 9.5 | KTC0188 | [1] | PLANETARY REDUCER |
| 10 | KTC0155 | [4] | PIN |
| 11 | KTC0170 | [1] | HOUSING |
| 12 | KTC0150 | [1] | BEARING,130mm ID x 210mm OD x 64mm W |
| 13 | 150824A1 | [1] | PLUG |
| 14 | 158352A1 | [2] | PLUG |
| 15 | KTC0158 | [1] | RETAINING WIRE |
| 16 | KTC0151 | [1] | SPACER |
| 17 | KTC0159 | [1] | RETAINING WIRE |
| 18 | KTC0152 | [1] | BEARING COVER |
| 19 | KTC0154 | [1] | SPACER |
| 20 | 150252A1 | [1] | BEARING,140 mm ID x 300 mm OD x 102 mm |
| 22 | KTC0153 | [1] | OIL SEAL |
| 23 | KTC0184 | [1] | SHAFT ASSY. |
| 24 | NSS | [4] | NOT SOLD SEPARAT |
| 25 | NSS | [7] | NOT SOLD SEPARAT |
| 26 | NSS | [4] | NOT SOLD SEPARAT |
| 27 | NSS | [4] | NOT SOLD SEPARAT |
| 28 | NSS | [3] | NOT SOLD SEPARAT |
| 29 | 150237A1 | [18] | BOLT,Hex Skt |
| 30 | NSS | [3] | NOT SOLD SEPARAT |
Related Products
Exhibition
Company Introduction
Packaging
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
