60221615 SWING CARRIER SUPPORT FOR RG27D25E SY485 SY500
| 원래 장소 | 메이드 인 차이나 |
|---|---|
| 브랜드 이름 | TCY |
| 모델 번호 | RG27D |
| 최소 주문 수량 | 1 |
| 가격 | 100-1000 |
| 포장 세부 사항 | 표준 수출 포장 |
| 배달 시간 | 2-3/협상하다 |
| 지불 조건 | T/T, Alipay, Wechat 등등 |
제품 상세 정보
| 제품 이름 | 스윙캐리어 아시리아 | 부품 번호 | 60221615 14193897 |
|---|---|---|---|
| 신청하기 | SY485 SY500 | 애플리케이션 | 스윙감속기어 |
| MOQ | 1PCS | 상태 | 새로운 |
| 배송항 | 광저우 닝보 이우 | 참고 | 다른 모델은 온라인으로 전달 할 수 있습니다. |
제품 설명
60221615 14193897 SWING CARRIER SUPPORT FOR RG27D25E SY485 SY500 SY550

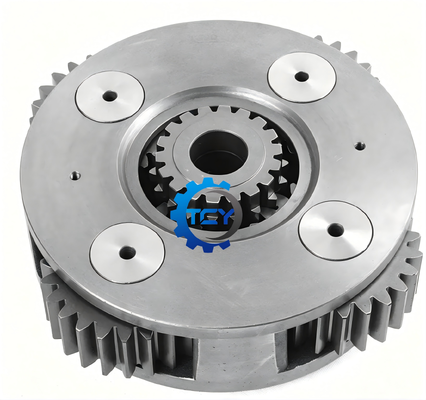

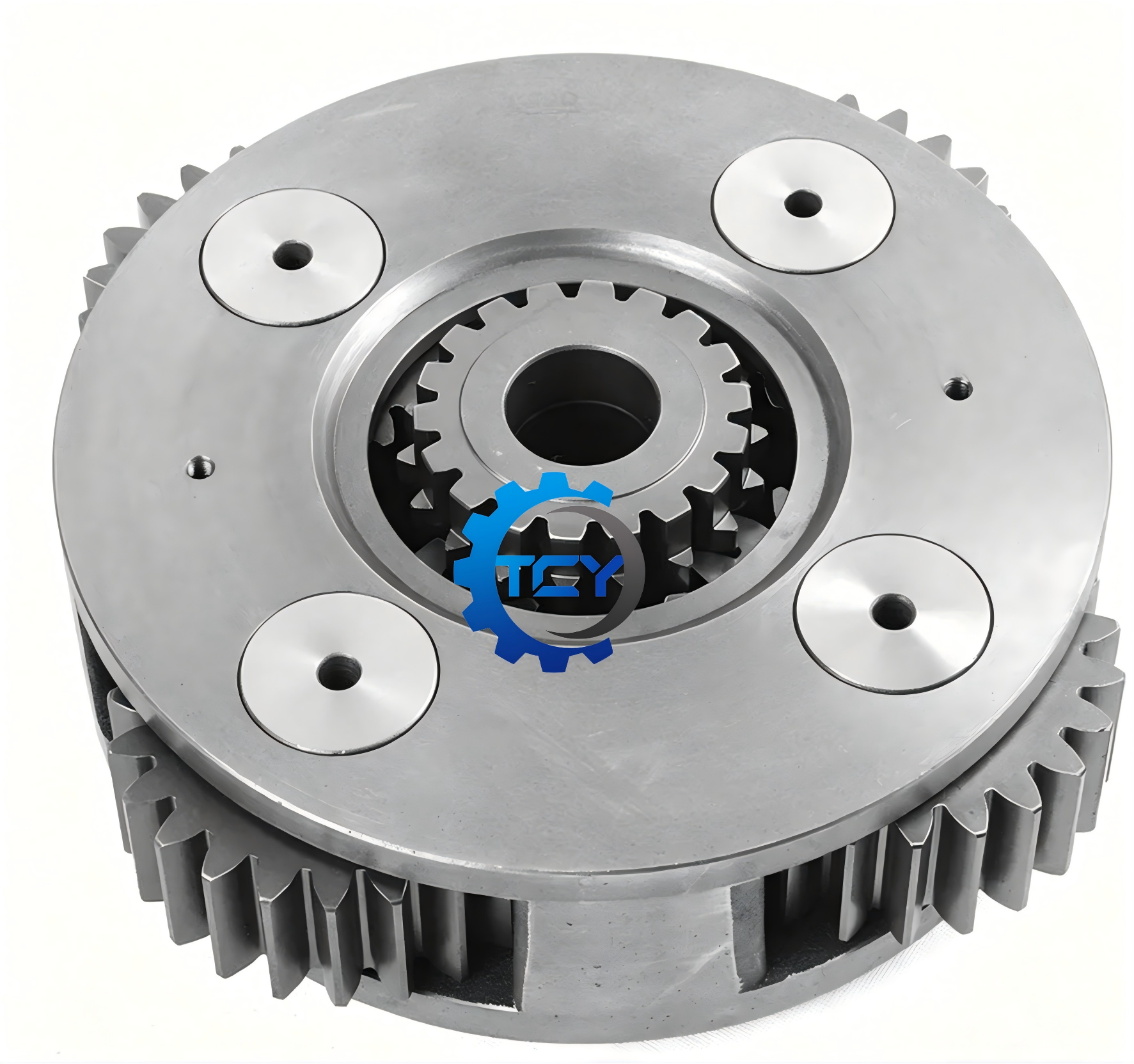

Excavator Slewing Planetary Carrier Assembly | 1:1 OEM Replica Aftermarket Gear Replacement Parts
High cost-performance, premium quality aftermarket spare parts for excavator slewing reducer maintenance, perfect fit & stable operation.
| Model:SY485 SY500 | Part name:Planetary Gear Assy |
| Part NO.:60221615 14193897 | MOQ:1PCS |
| Packing:Standard export packing | Place of Origin:China |
| Aftersale service provided:Online support | Apply To:Excavator Swing Drive |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |
| NO. | NAME | Part NO. | QTY |
| 1 | cover | 60221607 | 1 |
| 2 | Rear cover plate | 60221608 | 1 |
| 3 | Driving Shaft | 60221609 | 1 |
| 4 | Ring gear | 60221610 | 1 |
| 5 | Planet Gear | 60221611 | 4 |
| 6 | Central gear | 60221612 | 1 |
| 7 | Planet Gear | 60221613 | 3 |
| 8 | Central gear | 60221614 | 1 |
| 9 | Carrier Support | 60221615 | 1 |
| 10 | Carrier Support | 60221616 | 4 |
| 11 | Pin | 60221617 | 3 |
| 12 | Pin | 60221618 | 6 |
| 13 | Sliding block | 60221619 | 4 |
| 14 | Gasket | 60221620 | 1 |
| 15 | Sliding boot plate | 60221621 | 1 |
| 16 | Dipstick,oil | 60084222 | 1 |
| 17 | Tube, oil gauge | 60081472 | 1 |
| 18 | Pipe, oil feed | 60008615 | 1 |
| 19 | Cover, breathing tube | B229900002437 | 1 |
| 20 | nameplate | 60221622 | 1 |
| 21 | Pin | 60038620 | 2 |
| 22 | Bearing | 60221623 | 1 |
| 23 | Bearing | 60221624 | 1 |
| 24 | Pointer gauge | 60221625 | 3 |
| 25 | Outer hex bolt | 60221626 | 4 |
| 26 | Inner hexagon bolt | 60221627 | 20 |
| 27 | Gearbox Oil Seal | 60210760 | 1 |
| 28 | O-ring | B230101002175 | 1 |
| 29 | Spring pin | 60221628 | 3 |
| 30 | Spring pin | 60221629 | 4 |
| 31 | Support Ring | 60221630 | 1 |
| 32 | Support Ring | 60221631 | 1 |
| 33 | Bearing Seal Element | 60221632 | 1 |
| 34 | Plug,bolt,slewing reducer | B229900005912 | 1 |
| 35 | Plug | 60008609 | 1 |
| 36 | Fitting, grease | 60008610 | 1 |
| 37 | Plug,bolt,slewing reducer | B229900005912 | 1 |
| 38 | Slewing reducer plugs | 60221633 | 1 |
| 39 | Bolt head | 60221634 | 2 |
Company introduction
Packaging
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
