CRAWLER EXCAVATOR 39Q8-12101 SWING REDUCTION GEAR 38K8-10150 38K8-11100 SWING MOTOR FOR HX300L HX300 R290-9 R300-9
| 원래 장소 | 중국에서 만든 |
|---|---|
| 브랜드 이름 | TCY |
| 모델 번호 | HX300 |
| 최소 주문 수량 | 1 |
| 가격 | 500-2000 |
| 포장 세부 사항 | 목재 케이스 |
| 배달 시간 | 2-3/협상하다 |
| 지불 조건 | T/T, Alipay, Wechat 등등 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 | HX300 | 제품 이름 | 변동 감소 톱니바퀴 통 |
|---|---|---|---|
| 부품번호 | 39Q8-12101 | 신청 | HX300L HX300 R290-9 R300-9 |
| 모크 | 1pcs | 조건 | 새로운 |
| 무게 | 350 킬로그램 | 전달 포트 | 광저우 닝보 이우 |
제품 설명
TCY CRAWLER EXCAVATOR 39Q8-12101 SWING REDUCTION GEAR 38K8-10150 38K8-11100 SWING MOTOR FOR HX300L HX300 R290-9 R300-9
| Model:HX300 | Part name:Swing Reduction Gearbox |
| Part NO.:39Q8-12101 | MOQ:1PCS |
| Packing:Wooden case | Weight:350KG |
| Aftersale service provided:Online support | Apply To:Excavator Swing Drive |
| Delivery Time: 1-3 days Or negotiate | Note: Other models can be consulted online |

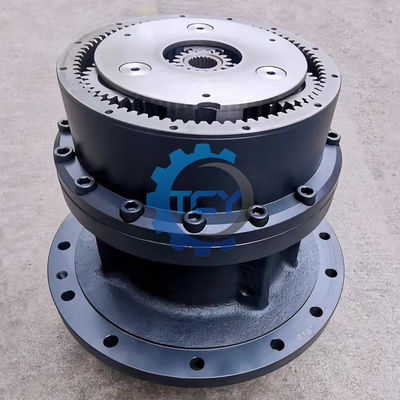

Product picture

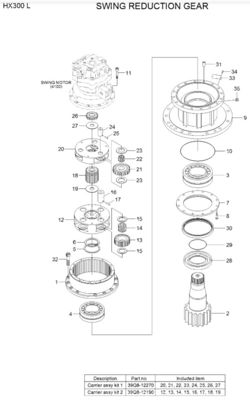

| Pos. | Part No | QTY | Parts Name |
| *-2. | 39Q8-12101 | [1] | SWING REDUCTION GEA |
| 1. | 39Q8-12110 | [1] | GEAR RING |
| 2. | 39Q8-12120 | [1] | SHAFT-DRIVE |
| 3. | 39Q8-12130 | [1] | BEARING-SPH.ROLLER |
| 4. | 39Q8-12140 | [1] | BEARING-SPH.ROLLER |
| 5. | 39Q8-12150 | [1] | PLATE-THRUST |
| 6. | 39Q8-12160 | [1] | RING-SNAP |
| 7. | 39Q8-12170 | [1] | COVER |
| 8. | S017-120306 | [12] | BOLT-HEX |
| 9. | 39Q8-12180 | [1] | CASING |
| 10. | S632-290001 | [1] | O-RING |
| 11. | S109-100306 | [12] | BOLT-SOCKET |
| K12. | 39Q8-12201 | [1] | CARRIER NO.2 |
| K13. | 39Q8-12211 | [4] | GEAR-PLANETARY NO.2 |
| K14. | 39Q8-12220 | [4] | BEARING-NEEDLE NO.2 |
| K15. | 39Q8-12231 | [8] | WASHER-THRUST NO.2 |
| K16. | 39Q8-12240 | [4] | PIN-CARRIER NO.2 |
| K17. | S472-910404 | [4] | PIN-SPRING |
| K18. | 39Q8-12251 | [1] | GEAR-SUN NO.2 |
| K19. | 39Q8-12261 | [1] | PLATE-THRUST NO.2 |
| K20. | 39Q8-12281 | [1] | CARRIER NO.1 |
| K21. | 39Q8-12291 | [3] | GEAR-PLANETARY NO.1 |
| K22. | 39Q8-12300 | [3] | BEARING-NEEDLE NO.1 |
| K23. | 39Q8-12311 | [6] | WASHER-THRUST NO.1 |
| K24. | 39Q8-12320 | [3] | PIN-CARRIER NO.1 |
| K25. | S472-800404 | [3] | PIN-SPRING NO.1 |
| K26. | 39Q8-12331 | [1] | GEAR-SUN NO.1 |
| K27. | 39Q8-12341 | [1] | PLATE-THRUST NO.1 |
| 28. | 39Q8-12350 | [1] | SLEEVE |
| 29. | S632-140001 | [1] | O-RING |
| 30. | 39Q6-12350 | [1] | SEAL-OIL |
| 31. | 39Q6-41450 | [2] | PIN-PARALLEL |
| 32. | S109-18050D | [14] | BOLT-SOCKET |
| 33. | 39Q8-12361 | [1] | NAME PLATE |
| 34. | 39Q6-41800 | [2] | RIVET |
| 35. | P220-430204 | [1] | PLUG-HEX |
| K. | 39Q8-12270 | [1] | CARRIER ASSY KIT 1 |
| K. | 39Q8-12190 | [1] | CARRIER ASSY KIT 2 |
Company introduction
Packaging
FAQ
Q:What is your sample policy?
A:We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q:What are your main products?
A:We focus on spare parts for excavator hydraulic system, such as travel motors, swing motors, travel gearboxes, swing gearboxes, gear parts, hydraulic pumps.
If you need other excavator accessories, we can also supply according to your.
Q:How long is the warranty period of the product?
A:The warranty time is 6 months, depending on the project situation; we do not provide the warranty time for original and second-hand products.
Q:How do I order?
A:You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.
Q:How do I pay?
A:You can pay through T/T, XT, wechat,alipay trade guarantee or negotiate payment.
